Displacement Launches

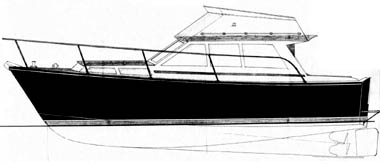

Pastime 8.4m Displacement Launch
Designed to take small diesel engines from 18 to 100hp. The hull has been designed to be easily driven at low speeds which makes her very economical. The interior layout consists of 2 bunks forward, a toilet and wash basin just aft of this and a dinette, galley, and settee berth in the main cabin. The craft has a boarding platform with self-draining cockpit and stern door for easy access. A flying bridge can be fitted if desired.

LOA:  28ft (8.4m)
Beam:  9'9"
Draught:  2'6"
Freeboard Forward: 4'6"
Freeboard Aft: 2'9"
Headroom Saloon:

6'0"

Headroom Forward: 5'0"



Freedom Displacement Launch
Freedom 9.14m Displacement Launch

Talisman - Semi-Displacement Launch
Talisman 10.36m Semi Displacement

Pastime

Pastime 8.4m Displacement Launch


Crusader
Crusader 11.58m Displacement Launch

Pioneer
Pioneer 13.7m Displacement Launch

Regent
Regent 20.1m Displacement Launch

Endeavour 12m Semi Displacement Launch
A semi displacement launch with increased overall beam to give wider walk around side decks. The craft features a large built in boarding platform with all the steering gear fitted in the platform itself. The bottom configuration has been changed slightly from some of our other displacement designs to increase the top speed without detriment to the displacement speed.
Study Print Available

LOD: 35'0"  (10.668m)
LOA:  39'6"  (12m)
Beam:  13'10" (4216mm)
LWL: 35'5" (10.668m)
Draught: 3'3"  (990mm)
Displacement:    6.9 tonnes
Fuel:    1000 litres
Water:   600 litres

Endeavour - Semi - Displacement Launch

Endeavour 12m Semi Displacement Launch

For more details order your
Pelin Plans Catalogue or Plan today
