Exodus 52ft

Availability: Product not in stock!

$ 3800.00
LOA: 52ft
LWL: 42ft
Beam: 14' 83/4"
Freeboard fwd: 6'3"
Freeboard aft: 5'2"
Draught: 6ft
Height of mast: Main - 53'11 1/4", Mizzen - 37'3"
Headroom: Aft: 6'6", Mid: 6'9" Fore: 7'0"
Displacement: 44,000 lbs
Mainsail: 450 sq.ft.
Ballast: 15,000lbs
Buy Plan or Study Print?

The EXODUS 52ft has been designed for ocean cruising and is robustly constructed from steel with 3/16" hull and 1/4" on the keel area. The design is ideally suited for both amateur and professional construction and the multi-chine makes it quick and easy to build with no complicated plate rolling etc. The craft is constructed upside down and turned over after welding is completed.

There is sufficient room under the floor for large diesel engines. However, with large engines a variable pitch propeller would need to be used to minimise drag.

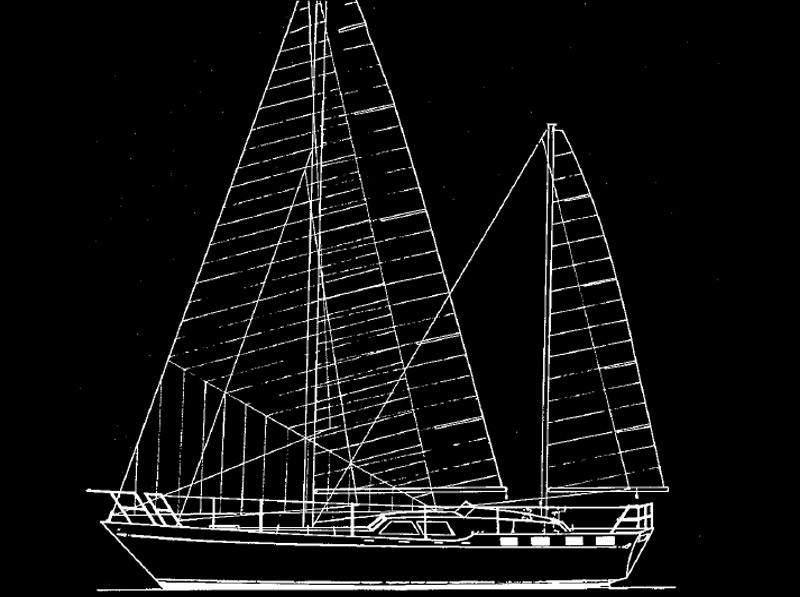

The craft has been ketch rigged to ease sail handling and reduce the area of the sails down to a manageable size.

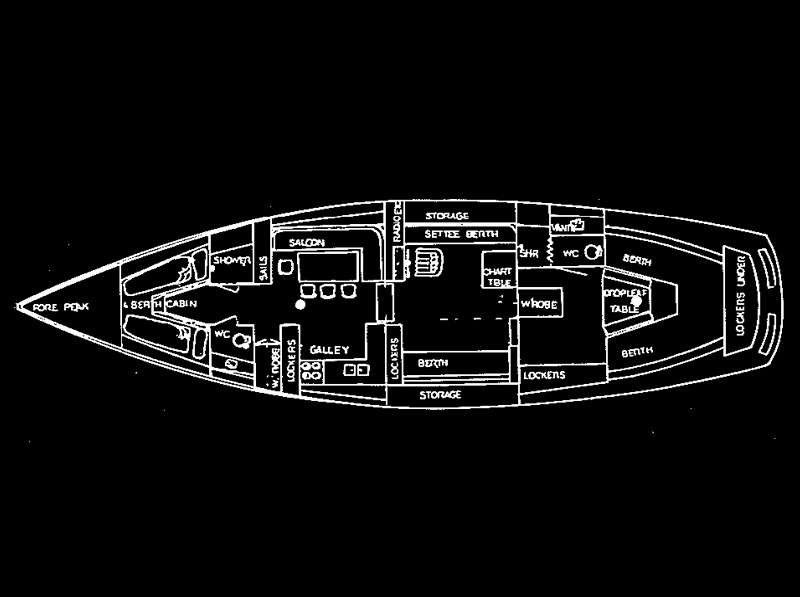

The internal layout can be varied to suit individual requirements and our suggested layout is shown above. This craft can easily attain speeds of 10 knots under power and 13/14 knots under sail.

The plan includes lines drawing with table of offsets, hull construction in steel and sail plan.
