coaster2

Coaster 11.582m

Availability: Product not in stock!

$ 2550.00
LOA: 38ft 11.582m
LWL 34ft 10.363m
Beam: 13ft 3.962m
Draught: 3'6" 1.062m
Freeboard fwd: 5'9" 1.752m
Freeboard aft: 4'0" 1.219m
Displacement: 20,448 lbs
Fuel capacity: 200 gallons
Water capacity: 100 gallons
Headroom:
Saloon 6'7" (2.006m), Forward Cabin 6'3" (1.905m)
Materials:
Approximately 8 tonnes. Mainly 3mm plate - some 2mm plate 11/4 x 1/4 and 11/4 x 3/16" bar etc.
Buy Plan or Study Print?

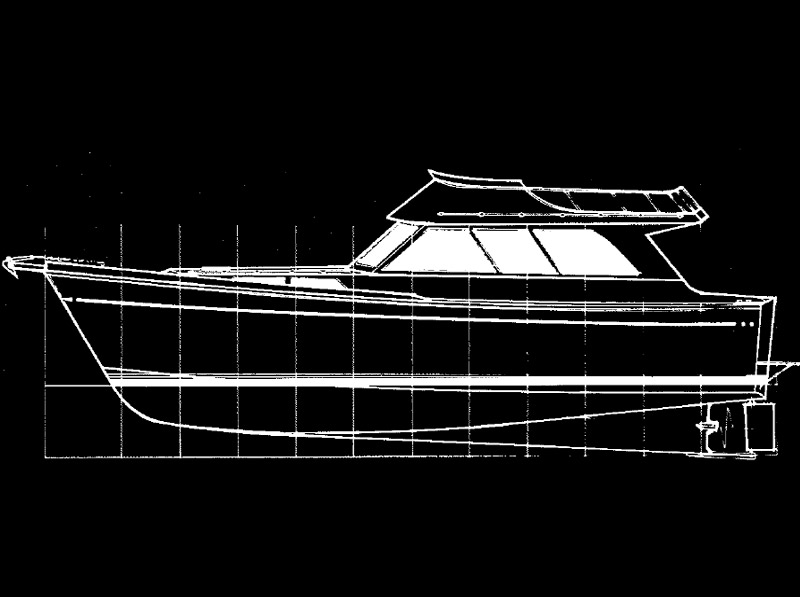

The COASTER has been designed as a coastal cruising launch of semi-displacement hull form, capable of cruising easily at 10 knots with a 100 s.h.p. motor. There is 3'9" vertical height under the floor in the engine compartment so the Coaster is capable of taking large in-line 6 cylinder engines such as the Fordson, GM, Cummins etc. However, the Coaster can be driven by relatively small engines. A 60 h.p. engine will give a maximum speed of 8 knots and a cruising speed of 6 knots if this is all that is required.

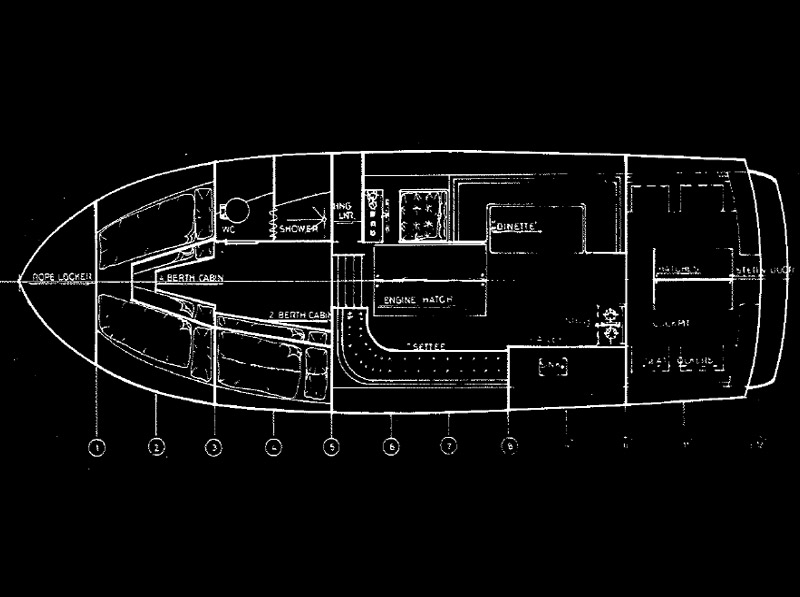

The interior layout consists of a 4 berth fore cabin with a WC and shower immediately after this to starboard. There is a 2 berth cabin to port of the shower and WC, this comprises the forward internal accommodation. The saloon is large and airy and is 15'3" fore and aft and 10'6" wide. The flying bridge is optional and is constructed from 9mm plywood to keep the weight down to a minimum. The cockpit is self draining and the cockpit floor is 1'9" above the L.W.L., so positive drainage is easily obtained. Large storage hatches are provided through the cockpit floor. The cockpit is 6'11" x 10'6". The hull is constructed upside down and pivoting points and lifting arrangement are shown on the plan.

The plan includes FULLSIZE PATTERNS of the frames, bulkheads, transom and a stem pattern for the curved portion of the stem, plus full working drawings and written instructions. For price of plan see attached price list.
