Time Share 12m

Availability: Product not in stock!

$ 4725.00
LOA: 13.2m
Beam: 4.114m
Draught: 838mm
Displacement: 9.3 tonnes
Headroom: 7ft 2.133m
Fuel: 908 litres
Water: 400 litres
Materials:
Plywood: 24 sheets 15mm, 52 sheets 12mm, 35 sheets 9mm, 18 sheets 6mm,
Timber: 10 x 1 1300ft (254 x 25 - 390m), 10 x 4 18ft (254 x 100 - 5.4m)
Buy Plan or Study Print?

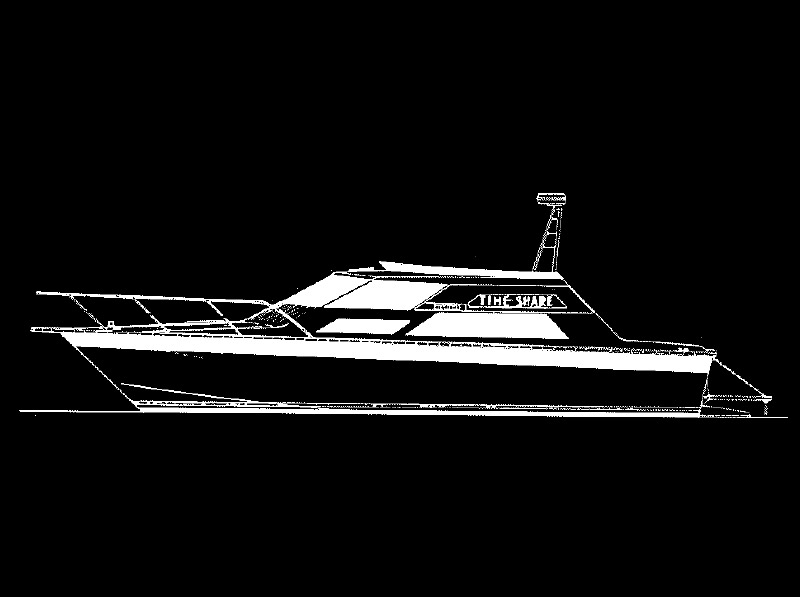

The TIME SHARE is our latest Coastal cruiser designed to be fast and economical. The construction is the same as the Resort with the integral bottom tanks formed with the girder construction and plywood floors.

This craft also features a 3 cabin configuration which are shown on the study print. The Time Share is designed for motors 300/500 h.p. diesel engines using either surface piercing propellers, vee drives or 1/08. Twin 200 h.p. motors give a top speed of 34 knots.

The plans include FULLSIZE PATTERNS of the frames, stem etc., plus detailed working drawings and written instructions. The plan is in metric and imperial measurements.
