Defender 8.381m

Availability: Product not in stock!

$ 1825.00
LOA: 27'6"-30ft 8.381m -9.144m
Beam: 10'5" 3.175m
Draught: 3'3" 990mm
Freeboard forward: 4'0" 1219mm
Freeboard aft: 3'3" 990mm
Headroom: 6'6" 1981mm
Displacement: 4.31 tonnes
Fuel: 57 gallons
Water: 20 gallons
Materials:
Timber: 900 super ft
Plywood: 12mm 9 sheets; 8mm 33 sheets; 19mm 1 sheet; 6mm 49 sheets;
Buy Plan or Study Print?

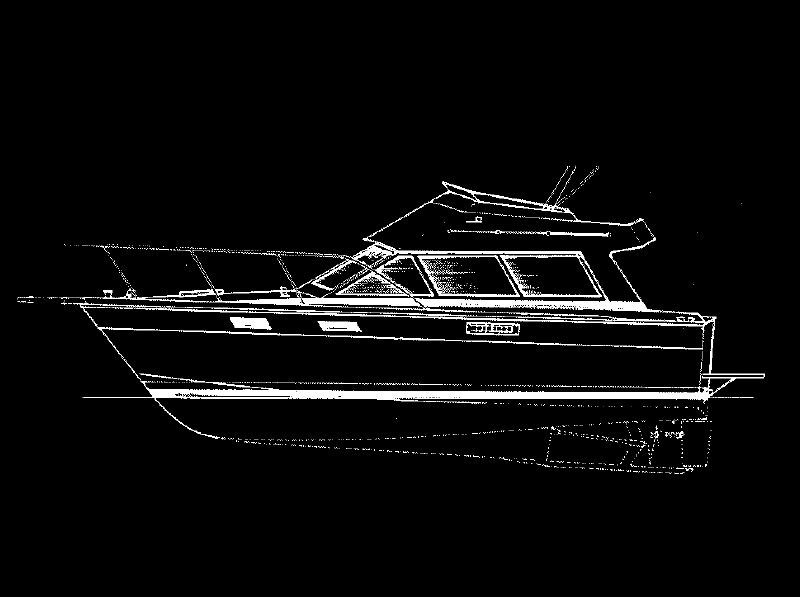

The DEFENDER is a smaller version of our popular Liberty 10m. The craft has been designed to take a flying bridge. The De­fender has an extremely flat propeller shaft angle of only 8° with the engine mounted amidships and covered by a small surround on top of which is the helm seat and instrument console. The Defender is constructed over conventional frames at approxi­mately 941 mm centres and the frames are overlaid with lami­nated bottom stringers and one piece side stringers. The chines and gunwales are also laminated. The bottom is 2 layers of 9mm ply, and the topsides 2 layers of 6mm ply.

The craft is designed for 80 h.p. to 220 h.p. and a 100 h.p. diesel will give a top speed of 18 knots and a cruise 15 knots. The interior layout shows one 4 berth fore cabin to port with com­bined shower and WC.

The plan includes FULLSIZE PATTERNS of the frames, stem, rims etc. plus detailed drawings of hull construction, cabin con­struction etc. plus written instructions. The plan is in metric and imperial.
