Cape Brett 12.8m

Availability: Product not in stock!

$ 4050.00
LOA: 42ft
Beam: 15ft
Freeboard fore: 6'0"
Freeboard aft: 3'10"
Headroom fore cabin: 6'0"
Headroom saloon: 6'6"
Weight ex machinery: 10,000lbs
Buy Plan or Study Print?

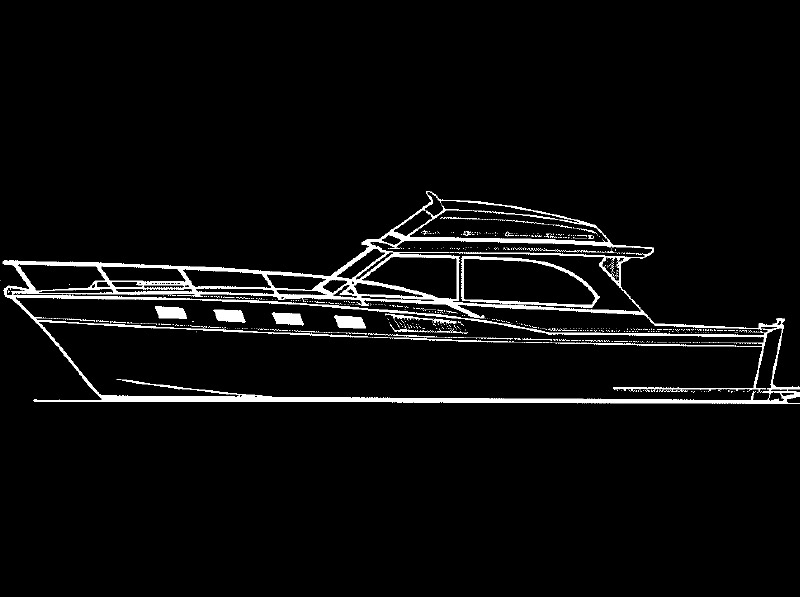

CAPE BRETT is a sports fisherman with good cruising accom­modation and has been designed to suit I/O drive as well as con­ventional shaft drive. Twin Volvo diesel 250 h.p. outdrives give a cruising speed of 23 knots as well as giving excellent manoeu­verability and the advantage of shallow water operations. Single diesels can be used such as the V8 GM Caterpillar or similar and performance figures can be given on application. The interior lay­out can be varied to suit individual requirements but basically features a 4 berth forward cabin, owner's cabin to port with toilet

and vanity and shower to starboard; the galley opposite the own­er's cabin is handy to the large saloon area which can be fitted with a folding table or dinette as required. The craft also has a large flying bridge and this is one of our latest high performance designs for the cruising man or sports fisherman.

The plan includes line drawings with table of offsets, hull con­struction plan, deck and cabin construction and general layout. Construction is 3 skins of 1/4" ply on the bottom and 2 skins of 5/16" on the sides.
