Landfall 10.36m

Availability: Product not in stock!

$ 960.00
LOA: 34ft 10.36m
LWL: 30'3" 9.22m
Beam: 17'5" 5.31m
Freeboard fwd: 4'8" 1.42m
Freeboard aft: 3'7" 1.10m
Draught: 1'8" 0.51m
Mast Height: 47'3" 14.04m
Cockpit size bridge deck: 14'6" x 5ft
Weight: 6082lbs 3000kgs
Headroom bridge deck: 5'6"
Headroom hulls: 6ft
Bridge deck clearance: 21" 0.635m
Sail area:
Mainsail 33.7 sq.m.
Genoa (1) 23.4 sq.m.
Genoa (2) 17.1 sq.m.
Storm jib 8.4 sq.m
Materials:
Timber: 10x1 700 super; 9x 13/4 80super
Plywood: 9mm 22 sheets; 6mm 105 sheets; 12mm 9 sheets
Bronze boat nails: 17 pkts; 8 gals glue; 6pkts screws, 6 gals Epoxy resin; 10m 1 oz chopped strand mat; 10m 18oz woven ravings.

Buy Plan or Study Print?

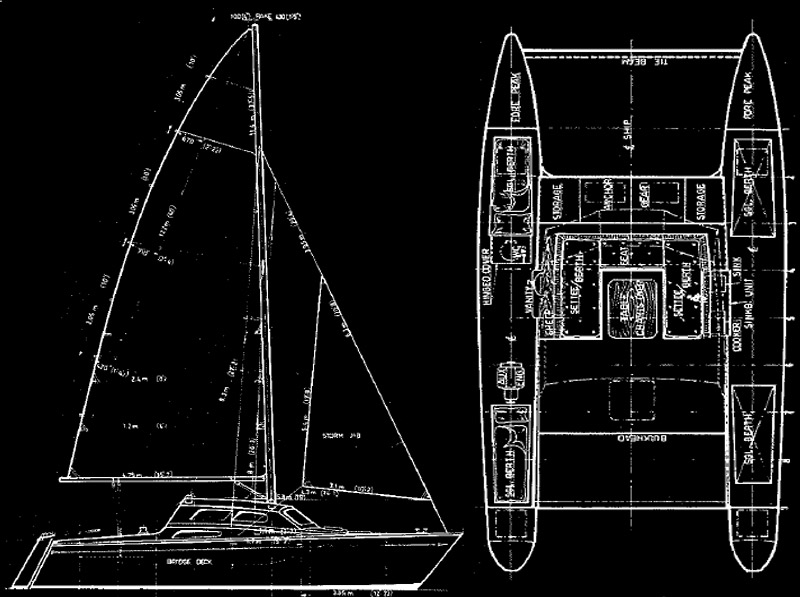

The LANDFALL is of symmetric vee hull form without centreboards. This craft is based on our popular 8.46m Glide Time and is of robust construction. The craft is constructed over conventional frames with fore and aft stringers and watertight bulkheads fore and aft to ensure positive buoyancy. The hull is skinned in 2 layers of fimm 5 ply which gives an extremely strong construction. The heavy laminated keels have been designed to take the rigours of grounding. The interior layout is six berth and features a large spacious bridge deck area for cruising in comfort. The Landfall has a bridge deck clearance of 0.635m and this increases when sailing to nearly 0.800m because of the wave formation around the hulls. The three quarter rig has been designed to be easily handled by a small crew, with slab reefing which allows the mainsail to be reduced so that the craft can be sailed in extremely heavy conditions. The Landfall has been designed for ocean cruising.

The plan includes FULLSIZE PATTERNS for the frames, stem and transom plus detailed drawings on setting up, hull construction etc. plus written instructions. The plan gives metric and imperial measurements.
