Smuggler 9.14m Fishing Boat

Availability: Product not in stock!

$ 1560.00
LOA: 30ft 9.14m
Length on waterline: 25'11" 7.90m
Beam: 10'0" 3.05m
Draught: 1'3" .381m
Freeboard fwd: 4'0" 1.22m
Freeboard aft: 3'0" 0.91m
Fuel capacity: 200 gallons 900 litres
Water capacity: 30 gallons 140 litres
Maximum pay load: 1500kgs
Displacement: 4.5 tonnes
Buy Plan or Study Print?

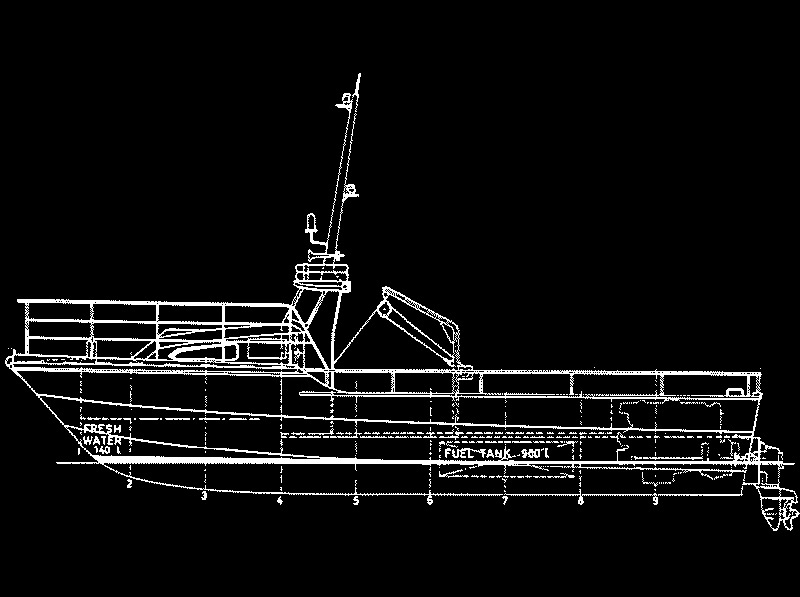

The SMUGGLER has been designed in alloy as a high speed fishing craft or general work boat. This hull has excellent load carrying ability and has exceptional seakeeping ability and was specifically designed for rough water conditions. The craft features our tried and proven gullwing after section fairing into moderately veed forward sections. This gives a soft ride with no broaching tendencies as well as excellent handling at low speed. The gullwing section aft prevents squatting at low speed and gives excellent stability at rest because of the chine immersion. The craft has generous freeboard forward as well as fairly full topside sections between stations 1 and 4 to prevent the bow bearing in a following sea. The Smuggler has been designed to suit engines up to 300 h.p. either petrol or diesel. A V8 Caterpillar or similar coupled to an outdrive gives a top speed of 25 knots i.e. 30 m.p.h. The hull is constructed on a simple building jig and the plan includes fullsize templates of the 9 frames and transom. The bottom of the craft is plated in 5mm marine grade aluminium and the sides in 4mm plate. The stem and keel bar and 125 x 10 and the side and bottom stringers are 90 x 9 on edge. The hull takes approximately 20 sheets of 5mm and 12 sheets of 4mm for plating. The Smuggler is ideal for long lining and gill netting and fish boxes can be built in below decks as desired. The fore cabin has room for two vee bunks.

The plan includes FULLSIZE PATTERNS of the frames, stem and transom plus detailed drawings on setting up, hull construction, etc. The plan is drawn to comply with Marine Department survey requirements. For price of plan see attached price list.
